Coyote Element XR 26" Wheel Mountain Bike

CYT1002

Regular price£189.00
/
Tax included. Shipping calculated at checkout.

Size
Size chart

Here you will find the best approximate information on optimal sizing that we can offer. Sizing varies by the manufacturer, type of bike, and other variants but this rough guide should give you a match. Sizing can also be individually subjective so If you have any more specific requirements regarding this information, we highly recommend calling our expert staff on 01268 695877, coming into the shop or speaking to us via Chat/Message!

We also recommend researching the manufacturer of the bike you are interested in directly - many manufacturer websites now offer a dedicated fit/size guide where you can enter your measurements. We hope to offer this service on our website by late 2023.

Scott Bikes Size Chart (click here/see below)



 General E-Bikes (Men & Women)

Your Height Inside Leg Road E-bikes Mountain E-bikes Hybrid/City/Trek E-bikes
147cm-152cm / 4'10"-5'0" 66cm / 26" 47, 48cm (Extra Small) 13” (Extra Small) 13”, 14" (Extra Small)
152cm-160cm / 5'0"-5'3" 69cm / 27" 49, 50cm (Extra Small) 13”, 14” (Extra Small) 14”, 15” (Extra Small or Small)
160cm-170cm / 5'3"-5'7" 71cm / 28" 51, 52, 53cm (Small) 15”, 16" (Small) 15”, 16" (Extra Small or Small or Medium)
170cm-175cm / 5'7"-5'9" 76cm / 30" 54, 55cm (Medium) 17", 18” (Medium) 17", 18” (Small or Medium)
175cm-180cm / 5'9"-5'11" 79cm / 31" 56, 57, 58cm (Medium or Large) 18”, 19" (Medium or Large) 19”, 20" (Medium or Large)
180cm-188cm / 5'11"-6'2" 81cm / 32" 59, 60cm (Large or Extra Large) 19", 20” (Large or Extra Large) 20", 21” (Large or Extra Large)
188cm-196cm / 6'2"-6'5" 86cm / 34" 60, 61, 62cm (Extra Large) 20", 21”, 22” (Large or Extra Large) 21”, 22” (Large or Extra Large)
196cm+ / 6' 5"+ 91cm / 36" 62, 63cm (Extra Large or bigger) 23", 24” (Extra Large or bigger) 23", 24” (Extra Large or bigger)

General Bikes (Men)

Your Height Inside leg Road Bikes Mountain Bikes Hybrid/City Bikes
147cm-152cm / 4'10"-5'0" 66cm / 26" 47, 48cm (Extra Small) 13” (Extra Small) 13”, 14" (Extra Small)
152cm-160cm / 5'0"-5'3" 69cm / 27" 49, 50cm (Extra Small) 13”, 14” (Extra Small) 14”, 15” (Extra Small or Small)
160cm-170cm / 5'3"-5'7" 71cm / 28" 51, 52, 53cm (Small or Medium) 15”, 16" (Small or Medium) 15”, 16" (Small)
170cm-175cm / 5'7"-5'9" 76cm / 30" 54, 55cm (Medium) 17", 18” (Medium) 17", 18” (Medium)
175cm-180cm / 5'9"-5'11" 79cm / 31" 56, 57, 58cm (Medium or Large 18”, 19" (Medium or Large) 19”, 20" (Medium or Large)
180cm-188cm / 5'11"-6'2" 81cm / 32" 59, 60cm (Large or Extra Large) 19", 20” (Large or Extra Large) 20", 21” (Large or Extra Large)
188cm-196cm / 6'2"-6'5" 86cm / 34" 60, 61, 62cm (Large or Extra Large) 20", 21”, 22” Large or Extra Large) 21”, 22” (Large or Extra Large)
196cm+ / 6' 5"+ 91cm / 36" 62, 63cm (Extra Large or bigger) 23", 24” (Extra Large or bigger) 23", 24” (Extra Large or bigger)

General Bikes (Women)

Your Height Inside leg Women's Road Bikes Women's Mountain Bikes Women's Hybrid/City Bikes
147cm-155cm / 4'10"-5'1" 66cm / 26" 44, 45, 46cm (Extra Small or smaller) 13”, 14" (Extra Small or smaller) 13”, 14" (Extra Small or smaller)
155cm-160cm / 5'1"-5'3" 69cm / 27" 47, 48, 49cm (Extra Small or Small) 13”, 14” (
Extra Small or Small)
14”, 15” (Extra Small or Small)
160cm-165cm / 5'3"-5'5" 71cm / 28" 50, 51, 52cm (Small) 15”, 16" (Small) 15”, 16" (Small)
165cm-172cm / 5'5"-5'8" 76cm / 30" 53, 54, 55cm (Medium) 17", 18” (Medium) 17", 18” (Medium)
172cm+ / 5'8"+ 79cm / 31" 56, 57cm (Large) 19" (Large) 19" (Large)

General Bikes (Kids)

Approx. age Min. inside leg Wheel size
1-2 years 24cm / 9" 10"
2-3 years 31cm / 12" 12"
3-4 years 38-43cm / 15-17" 14"
4-5 years 48cm / 19" 16"
5-7 years 52-58cm / 20-23" 20"
8-12 years 62-67cm / 24-26" 24"
10-14 years 69-78cm / 27-31" 26"
  • This product can only be ordered in-store. Some products may NOT be in stock or in store and have to be ordered in per request. Please check with us before travelling.
  • 30 Day No-Hassle Returns, Full Manufacturer Warranty
  • FREE Bike Build and/or Minimal Assembly
  • Les's Cycles - Open Since 1976!

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

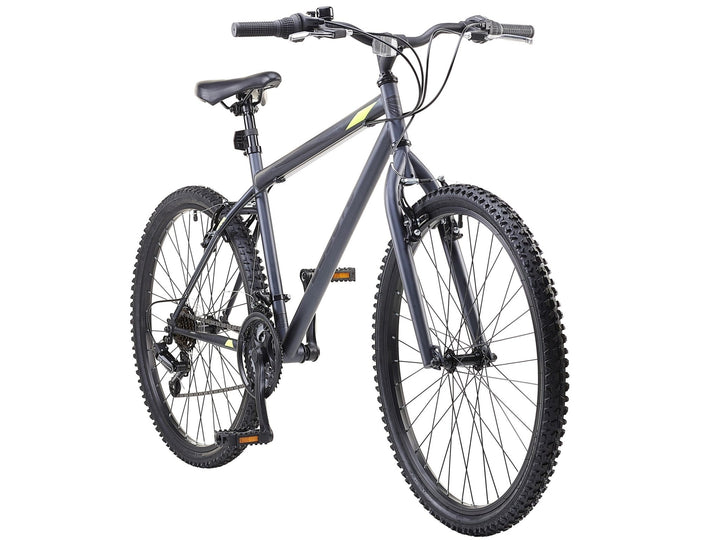

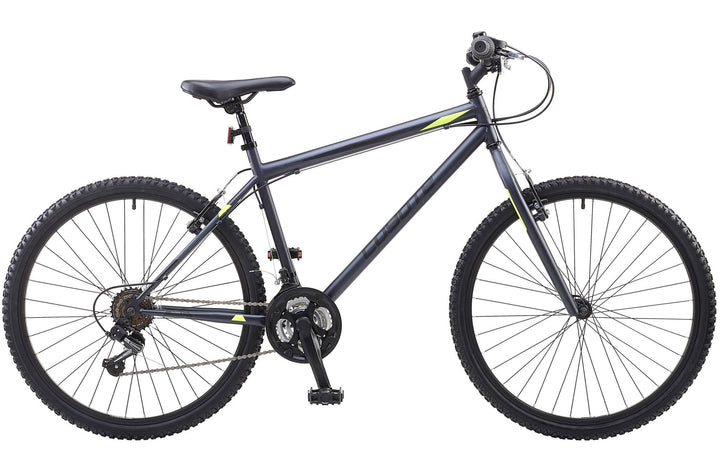

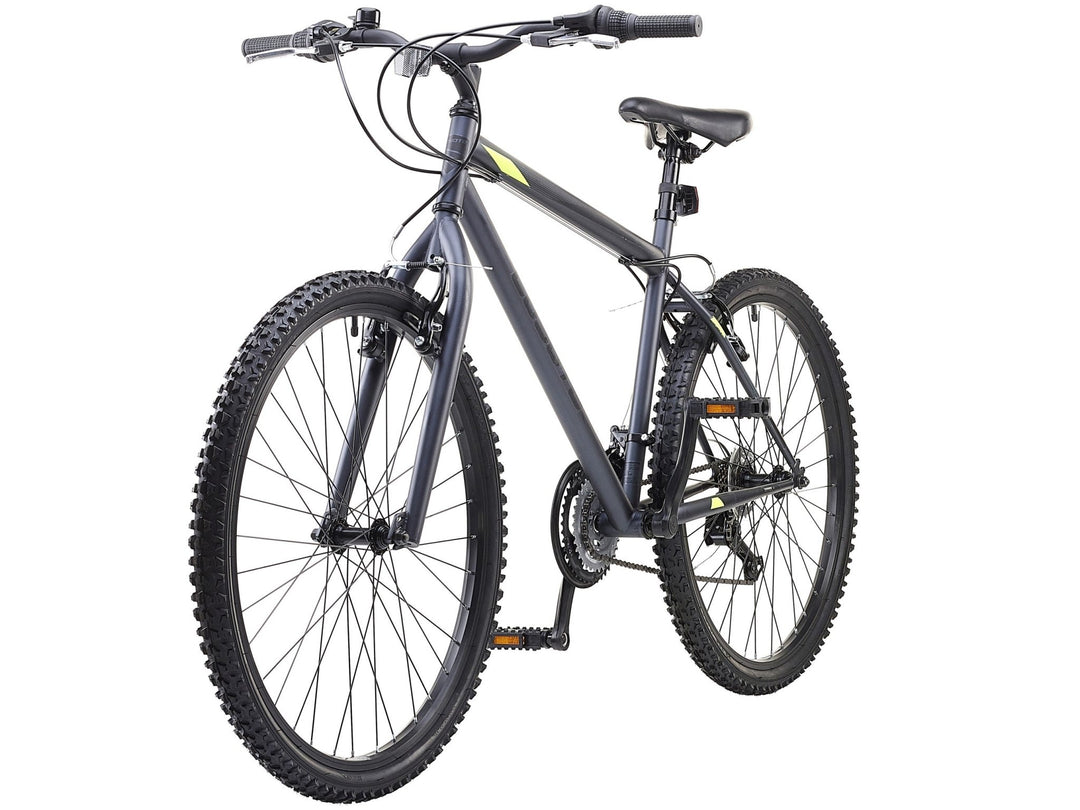

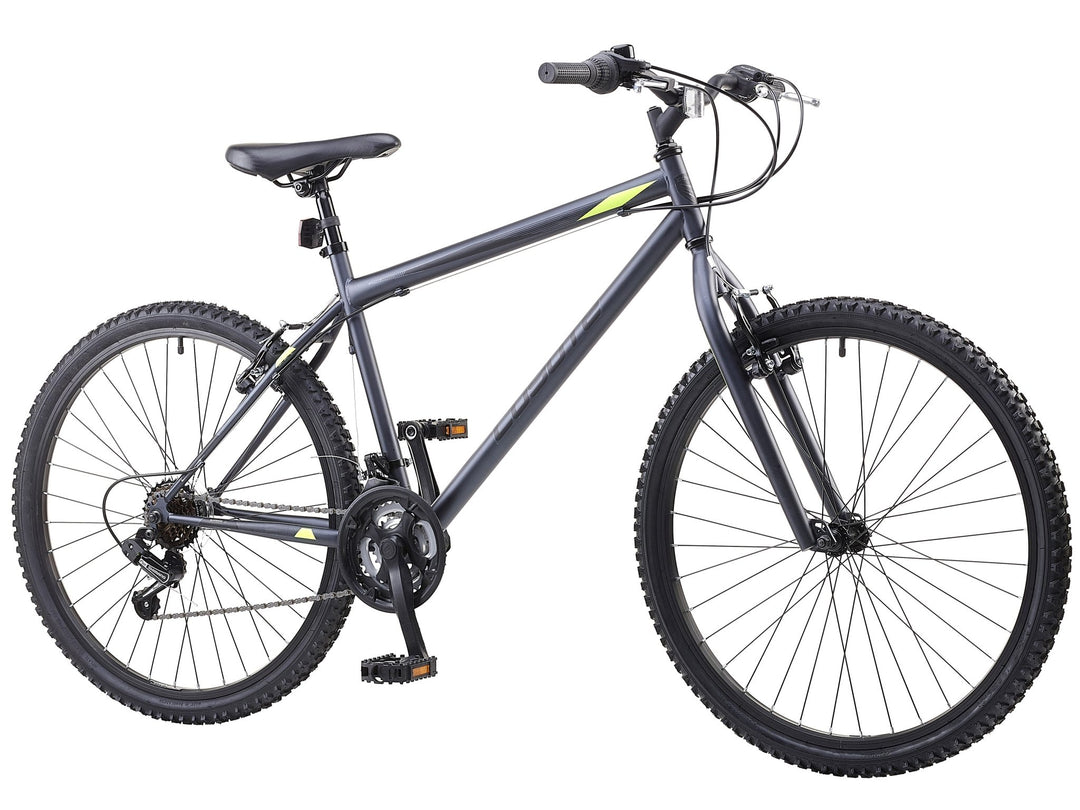

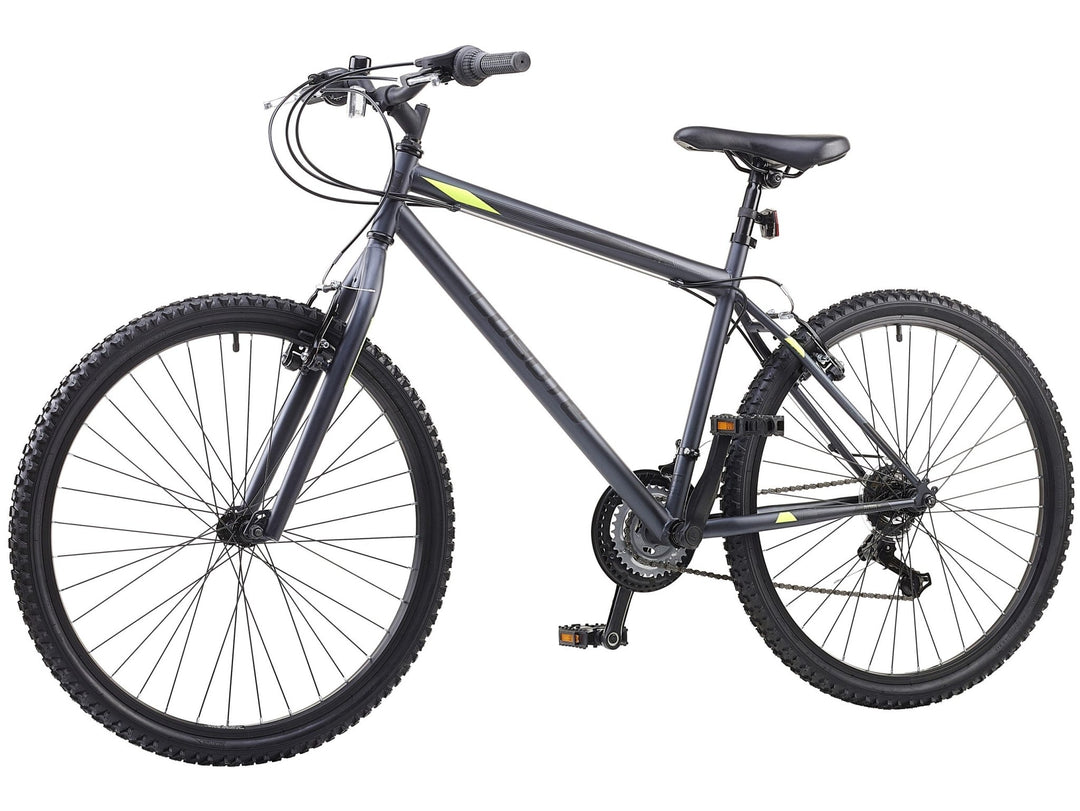

The Element XR is built around a high tensile steel frame making it both strong and responsive so perfect for weekend jaunts or taking on the trails. Other features include lightweight Alloy rims and a powerful V type brake system with lightweight alloy levers, chunky wide mountain bike tyres and a comfort padded saddle. The Element XR also features 18 speed Sunrun gearing with mega range feature to minimize the impact of steep hills. Rock solid specification at an affordable price. New for 2020, updated frame geometry. Better clearance to allow tyres to spin freely, decreasing the risk of dirt clogging up. We have reduced the head angle for a more predictable/stable ride. Steeper seat tube angle makes climbing easier and pedalling more efficient. Longer front centre increases stability, longer wheelbase increases comfort and inspires confidence in descents.

Features:

  • Steel frame is strong making it able to withstand the rigours of everyday use. Updated frame geometry for 2020. Better clearance, high stability, extra comfort and confidence.
  • Equipped with 18 speed Sunrun gearing to minimise the impact of steep hills.
  • Sunrun's shifters to make shifting between gears simpler.
  • MTB tyres have a tread pattern which ensures this bike is suitable for off road riding and rough terrain.
  • MTB specific saddle provide extra comfort during your ride.
  • V Brakes provide rapid stopping power in all terrain conditions.
  • Alloy rims add a style and reduce the bicycles weight.
  • Steel Lo-Rise handlebar helps improve the riders visibility.

Specification:

  • Frame: Steel Frameset.
  • Fork: Steel/rigid.
  • Headset: Steel full ball bearing.
  • B.B Set: Cotterless 5 pcs.
  • Decals: Coyote Elements XR gents 26" wheel 2019.
  • Handlebar: Steel Lo-Rise Bar 660mm.
  • Stem: Steel MTB Type.
  • Grips: Pvc MTB Type 90mm Black.
  • Front Brake: V Type.
  • Rear Brake: V Type.
  • Shifter Right: twist grip.
  • Shifter Left: twist grip.
  • Front Derailleur: Down Pull, 28.6mm.
  • Rear Derailleur: Sunrun.
  • Chain: 3/32'' x 1/2'' x 110L.
  • Chainset: Steel 24X34X42T x 170mm.
  • Tyres Front: 26" X 2.10".
  • Tyres Rear: 26" X 2.10".
  • Rims: 26" Alloy 36 Hole Black Single wall.
  • Front Hub: Steel 36H, Nutted.
  • Rear Hub: Steel 36H, Nutted.
  • Saddle: MTB Type Black.
  • Seat Clamp: Steel bolt w/washer & Dome Nut.
